| MOQ: | 1 |
| দাম: | US $2500.00 - 3000.00/ Set |
| স্ট্যান্ডার্ড প্যাকিং: | প্লাস্টিকের বক্স + ফোম |
| বিতরণ সময়কাল: | 6 ~ 8 সপ্তাহ |
| মূল্যপরিশোধ পদ্ধতি: | টি/টি |
| সরবরাহ ক্ষমতা: | প্রতি বছর 1800 সেট |

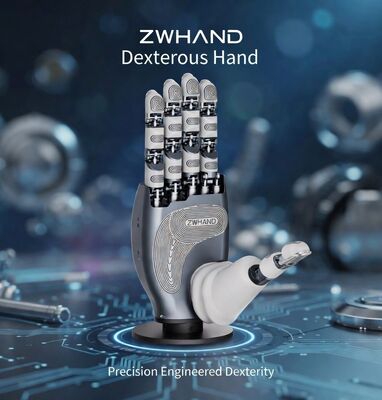

ZWHAND is a 5-finger tendon-driven dexterous robotic hand. It is a cost-effective Chinese-made solution for humanoid robot hands, collaborative robot end-effectors, research labs and education platforms. The hand uses micro linear actuators and tendon drive to achieve human-like grasping with integrated force/position control.
| Parameter | Specification |
|---|---|
| Fingers | 5 fingers (anthropomorphic layout) |
| Active Degrees of Freedom | 6–8 (model dependent) |
| Total Joints | 12–15 (typical) |
| Drive System | Tendon-driven with micro linear actuators |
| Sensing | Force / tactile sensors |
| Control Mode | Position + force hybrid control |
| Communication | CAN / RS485 / EtherCAT |
| Weight | Approximately 400–600 g |
| Finger Gripping Force | 5–15 N per finger (typical range) |
Please provide:
