| MOQ: | 1 |
| দাম: | US $3000.00 - 3500.00/ Set |
| স্ট্যান্ডার্ড প্যাকিং: | প্লাস্টিক বাক্স |
| বিতরণ সময়কাল: | 6 ~ 8 সপ্তাহ |
| মূল্যপরিশোধ পদ্ধতি: | টি/টি |
| সরবরাহ ক্ষমতা: | প্রতি বছর 1000 সেট |

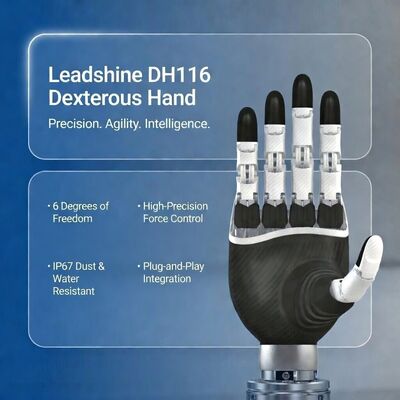

The Leadshine DH116 is a 5-finger dexterous robotic hand from the DH series. It features 6 active degrees of freedom + 5 passive, brushless coreless motors, planetary reducers, and hybrid force-position control. Designed for collaborative robots, humanoid hands and research/education platforms, it offers strong load capacity and perception at a competitive price point.
| Parameter | Specification |
|---|---|
| Total Degrees of Freedom | 11 (6 active + 5 passive) |
| Motors | Brushless coreless + planetary reducer |
| Communication | EtherCAT (100 MHz), CAN/RS485 compatible |
| Maximum Load (whole hand) | 40 kg |
| Maximum Load (single finger) | 10 kg |
| Gripping Life | > 100,000 cycles |
| Control Mode | FOC current loop + tactile feedback + force-position hybrid |
| Series | DH116 |
Please provide:
|
|
| MOQ: | 1 |
| দাম: | US $3000.00 - 3500.00/ Set |
| স্ট্যান্ডার্ড প্যাকিং: | প্লাস্টিক বাক্স |
| বিতরণ সময়কাল: | 6 ~ 8 সপ্তাহ |
| মূল্যপরিশোধ পদ্ধতি: | টি/টি |
| সরবরাহ ক্ষমতা: | প্রতি বছর 1000 সেট |
The Leadshine DH116 is a 5-finger dexterous robotic hand from the DH series. It features 6 active degrees of freedom + 5 passive, brushless coreless motors, planetary reducers, and hybrid force-position control. Designed for collaborative robots, humanoid hands and research/education platforms, it offers strong load capacity and perception at a competitive price point.
| Parameter | Specification |
|---|---|
| Total Degrees of Freedom | 11 (6 active + 5 passive) |
| Motors | Brushless coreless + planetary reducer |
| Communication | EtherCAT (100 MHz), CAN/RS485 compatible |
| Maximum Load (whole hand) | 40 kg |
| Maximum Load (single finger) | 10 kg |
| Gripping Life | > 100,000 cycles |
| Control Mode | FOC current loop + tactile feedback + force-position hybrid |
| Series | DH116 |
